MVD X Dungs gas solenoid valve for ATEX Program
- These ATEX solenoid valves MVD X and MV X are used for securing, limiting, shutting off and releasing gas supply in applications with exploding atmosphere.
- The abbreviation ATEX stands for the French term "Atmosphere explosible" and is used as synonym for the two EU directives concerning explosion protection: Equipment directive 94/9/EC and Workplace directive 1999/92/EC. The equipment for Dungs ATEX product range complies with equipment group II, category 3 for gas and dust. It may only be used in zones 2 and 22.
- Marking: Valve body: II 3 GD T3, on solenoid: II 3 G Ex mc nA IIB T3 Gc (gaz) si II 3 D Ex mc IIB T 100oC Dc.
- Normally closed, single-stage, fast closing, fast opening up to 1 second. For the MVD models the gas flow can be limited manually by means of the main flow setting.
- Maximum operating pressure up to 200/500 mbar, ambient temperature is -15÷60 oC (0÷60 oC for Viton models); degree of protection IP 65.
- Rectifier wiring in connection box with connecting cable of 5 meters.
- Reliable function, rugged and maintenance-free.
- Suitable for employment with gas families 1, 2, 3 and other neutral gaseous media as well as air, flue and exhaust gases. Some versions do not contain any non-ferrous metals, suitable for gases of up to max. 0.1 vol. % H2S, dry.
Technical specifications MVD X valves
Valve type | Code | Rp / DN | Voltage (V) | pmax (mbar) | Pmax (VA) | Solenoid no. | Open time (s) | Degree of prot. |
---|---|---|---|---|---|---|---|---|
Gas valve MVD 503 X | 253011 | Rp 3/8 | 230 V (AC) | 500 | 17 | 100X | <1 | IP 54 |
Gas valve MVD 505 X | 253012 | Rp 1/2 | 17 | 100X | ||||
Gas valve MVD 507 S02 X | 253013 | Rp 3/4 | 230 V (AC) | 30 | 200X | |||
257862 | 24 V (DC) | - | 200X | |||||
Gas valve MVD 510 X | 253014 | Rp 1 | 230 V (AC) | 30 | 200X | |||
255272 | 24 V (DC) | - | 200X | |||||
Gas valve MVD 515 X | 253015 | Rp 1 1/2 | 230 V (AC) | 65 | 300X | |||
Gas valve MVD 520 X | 253016 | Rp 2 | 100 | 400X | ||||
Gas valve MVD 2040 S02 X | 253017 | DN 40 | 230 V (AC) | 200 | 65 | 300X | <1 | IP 54 |
Gas valve MVD 2050 S02 X | 253018 | DN 50 | 65 | 300X | ||||
Gas valve MVD 2065 S02 X | 253019 | DN 65 | 100 | 400X | ||||
Gas valve MVD 2080 S02 X | 253020 | DN 80 | 80 | 500X | ||||
Gas valve MVD 2100 S02 X | 253021 | DN 100 | 100 | 550X | ||||
Gas valve MVD 2125 S02 X | 253022 | DN 125 | 90 | 61EX | ||||
Gas valve MVD 2150 S02 X | 253023 | DN 150 | 90 | 61EX |
Valve type | Code | DN | Voltage (V) | pmax (mbar) | Solenoid nr. | Opening time (s) | Degree of prot. |
---|---|---|---|---|---|---|---|
Solenoid valve MVD 2040 S02 X | 253024 | DN 40 | 24 V (DC) | 200 | 300X | <1 | IP 54 |
Solenoid valve MVD 2050 S02 X | 253025 | DN 50 | 300X | ||||
Solenoid valve MVD 2065 S02 X | 253026 | DN 65 | 400X | ||||
Solenoid valve MVD 2080 S02 X | 253027 | DN 80 | 500X | ||||
Solenoid valve MVD 2100 S02 X | 253028 | DN 100 | 550X | ||||
Solenoid valve MVD 2125 S02 X | 253029 | DN 125 | 61EX | ||||
Solenoid valve MVD 2150 S02 X | 253030 | DN 150 | 61EX | ||||
Solenoid valve MVD 5100 S02 X | 253031 | DN 100 | 230 V (AC) | 500 | 61EX | <1 | IP 54 |
Solenoid valve MV 5125 X | 253032 | DN 125 | |||||
Solenoid valve MV 5150 X | 253033 | DN 150 |

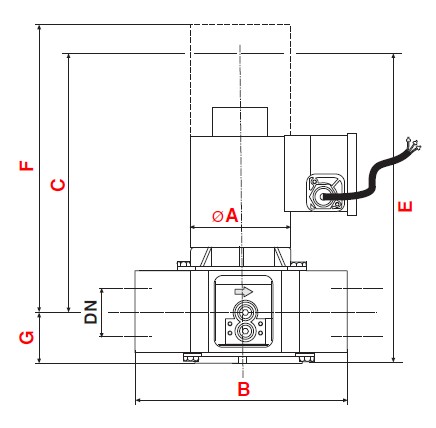

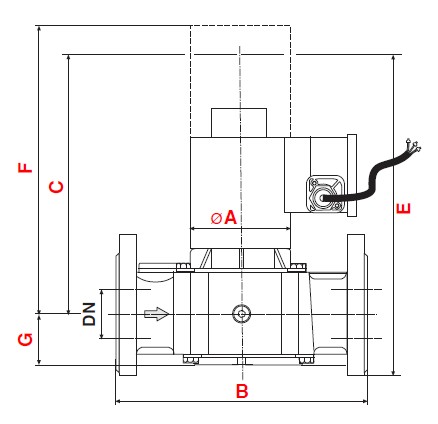

Dimensions solenoid valves MVD / MVDLE (mm)
For the images that aren't clear move the mouse over them to zoom.
Valve type | A | B | C | D | E | F | G | Weight (kg) |
---|---|---|---|---|---|---|---|---|
Solenoid valve MVD 503 X | 50 | 60 | 90 | 75 | 113 | 190 | 20 | 1.6 |
Solenoid valve MVD 505 X | 50 | 75 | 90 | 75 | 113 | 200 | 23 | 1.7 |
Solenoid valve MVD 507 S02 X | 75 | 100 | 135 | 80 | 160 | 190 | 25 | 2.4 |
Solenoid valve MVD 510 X | 75 | 110 | 135 | 90 | 165 | 190 | 30 | 2.3 |
Solenoid valve MVD 515 X | 95 | 150 | 170 | 116 | 210 | 255 | 35 | 5.3 |
Solenoid valve MVD 520 X | 115 | 170 | 190 | 130 | 235 | 300 | 45 | 9.5 |
Solenoid valve MVD 2040 S02 X | 95 | 200 | 170 | 150 | 230 | 255 | 40 | 0.80 |
Solenoid valve MVD 2050 S02 X | 95 | 230 | 170 | 165 | 220 | 255 | 45 | 1.00 |
Solenoid valve MVD 2065 S02 X | 115 | 290 | 215 | 185 | 275 | 320 | 55 | 2.50 |
Solenoid valve MVD 2080 S02 X | 135 | 310 | 250 | 200 | 305 | 360 | 70 | 2.60 |
D = maximum width
F = space requirement for mounting solenoid

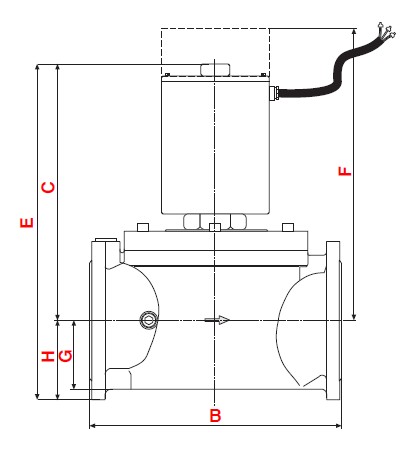

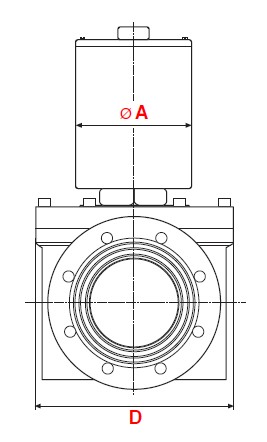

Valve type | A | B | C | D | E | F | G | H | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|
Safety valve MVD 2100 S02 X | 150 | 350 | 310 | 240 | 395 | 480 | 85 | 100 | 30.8 |
Safety valve MVD 2125 S02 X | 170 | 400 | 406 | 290 | 531 | 514 | 112 | 125 | 54.5 |
Safety valve MVD 2150 S02 X | 170 | 480 | 439 | 290 | 582 | 547 | 125 | 143 | 62.7 |
Safety valve MVD 5100 S02 X | 170 | 350 | 360 | 240 | 418 | 600 | 85 | 100 | 39.7 |
Safety valve MV 5125 X | 170 | 400 | 406 | 290 | 531 | 514 | 112 | 125 | 53.1 |
Safety valve MV 5150 X | 170 | 480 | 439 | 290 | 582 | 547 | 125 | 143 | 62.1 |
F = space requirement for mounting solenoid

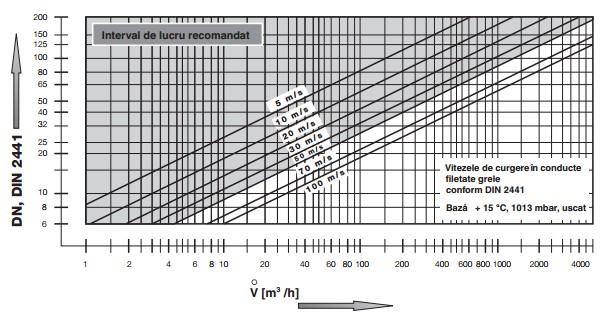

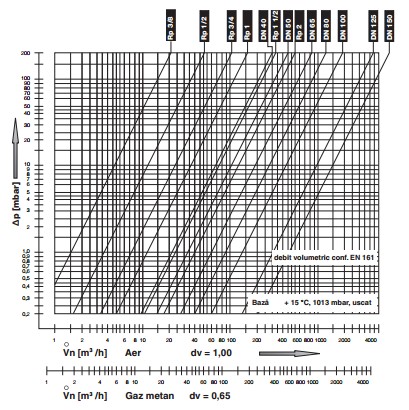

Flow diagrams gas valves MVD X
- For more drawings or details access the operation manual.
For the images that aren't clear move the mouse over them to zoom.
Prices for MVD X solenoid valves
Code | MVD 5.. X IP54 | Prices without VAT |
---|---|---|
253011 | Vana de gaz MVD 503 X 230 V(AC) | 0.00 |
253012 | Solenoid valve MVD 505 X 230 V(AC) | 0.00 |
253013 | Solenoid valve MVD 507 S02 X 230 V(AC) | 0.00 |
257862 | Solenoid valve MVD 507 S02 X 24 V(DC) | 0.00 |
253014 | Solenoid valve MVD 510 X 230 V(AC) | 0.00 |
255272 | Solenoid valve MVD 510 X 24 V(AC) | 0.00 |
253015 | Solenoid valve MVD 515 X 230 V(AC) | 0.00 |
253016 | Solenoid valve MVD 520 X 230 V(AC) | 0.00 |
MVD 2... S02 X 230 V(AC) IP54 | ||
253017 | Solenoid valve MVD 2040 S02 X | 0.00 |
253018 | Solenoid valve MVD 2050 S02 X | 0.00 |
253019 | Solenoid valve MVD 2065 S02 X | 0.00 |
253020 | Solenoid valve MVD 2080 S02 X | 0.00 |
253021 | Solenoid valve MVD 2100 S02 X | 0.00 |
253022 | Solenoid valve MVD 2125 S02 X | 0.00 |
253023 | Solenoid valve MVD 2150 S02 X | 0.00 |
MVD 2... S02 X 24 V(DC) IP54 | ||
253024 | Solenoid valve MVD 2040 S02 X | 0.00 |
253025 | Solenoid valve MVD 2050 S02 X | 0.00 |
253026 | Solenoid valve MVD 2065 S02 X | 0.00 |
253027 | Solenoid valve MVD 2080 S02 X | 0.00 |
253028 | Solenoid valve MVD 2100 S02 X | 0.00 |
253029 | Solenoid valve MVD 2125 S02 X | 0.00 |
253030 | Solenoid valve MVD 2150 S02 X | 0.00 |
253031 | Solenoid valve MVD 5100 S02 X 230 V(AC) IP54 | 0.00 |
253032 | Solenoid valve MV 5125 X 230 V(AC) IP54 | 0.00 |
253033 | Solenoid valve MV 5150 X 230 V(AC) IP54 | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
