Automatic burner control DGAU. 09/2 Dungs with UV scanner
- These automatic burner controls DGAU. 09/2 are designed for ignition control and monitoring for gas burners without fan and with ignition gas valve, for intermittent operation with unlimited capacity.
- Flame monitor with a UV detector.
- Program sequence control by electronic timers.
- Electronic ignition with ignition transformer ZAB 5000/13.
- Classification EN 298 AILLXN.
- Note: This series is no longer part of the Dungs main product line.
Functional description DGAI. 09/2
When the regulator receives a heat request, voltage is applied to the ignition transformer and the ignition gas valve. If a flame occurs when the regulator is switched on, the program sequences is
is blocked. Ignition transformer and ignition gas valve will be switched off after the safety interval period (SZA). If no flame is generated during the safety interval (SZA) of 10 seconds fault interlock
is performed. On flame loss during operation, the gas valve is switched off within 1 second (SZB).
Fault release: by means of an integrated button.
Caution: The UV diode responds to the ignition spark. Therefore it has to be aligned so that only the ignition and main flames are signalled. Clean the UV diode at regular intervals
to ensure proper functioning. For safety reasons, replace the UV diodes after approx. 8000 operating hours.
U.V. flame detector
The UV diodes used are sensitive interrupter tubes responding to UV radiation and standard filament and fluorescent lamps. The stable system design of the interrupter tubes ensures high mechanical
resistance. They can be operated at ambient temperature of -20÷100oC. The greatest sensitivity can be achieved when UV radiation emanating from the flame impinges laterally in the
radiation sensitive zone of the UV diode. The UV flame sensor is optimally positioned by measuring the UV current. For fault-free operations, a sufficiently large current (approx 2 mA) must flow through
the UV diode. The distance between the flame and the UV sensor can be about 300-500 mm.
Technical specifications
Type | Code | Voltage (V) | Frequency (Hz) | Power consumption (VA) | Degree of protection | Ambient temperature (oC) | Safety interval start (s) |
---|---|---|---|---|---|---|---|
DGAU. 09/2 | 214735 | 230 VAC | 50 | 5 | IP 40 | 0÷60 | <10 |
DGAU. 09 | 067645 |

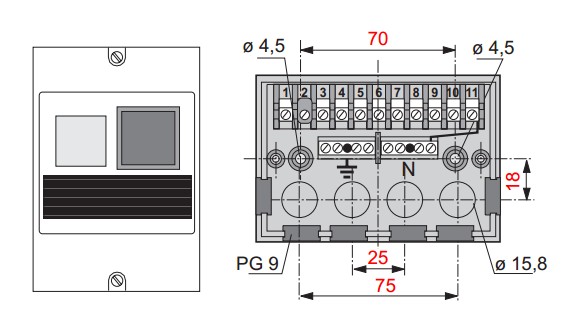

Dimensions DGAU. 09 (mm)
Automatic burner control DGAU. 09/2

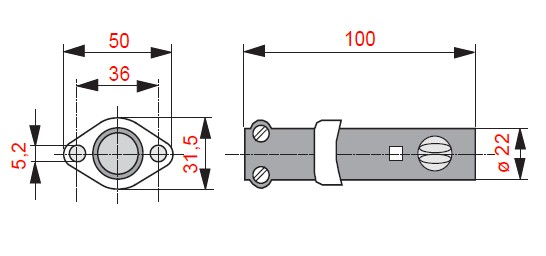

Flame monitor UV 4
For the images that aren't clear move the mouse over them to zoom.
Prices for controls
Code | Type | Prices without VAT |
---|---|---|
214735 | Automatic burner control DGAU. 09/2 | 0.00 |
067645 | Automatic burner control DGAU. 09 | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
