Double solenoid gas valves DMV-D/11 Dungs

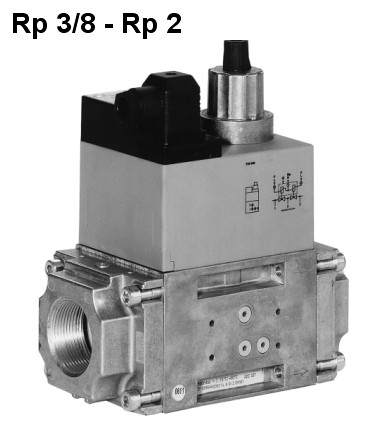

- These double solenoid valves DMV-D/11, DMV-DLE/11 integrate two solenoid valves in one compact fitting and are used where two single valves were mounted previously. In connection with Dungs gas regulators and additional components, a wide variety of regulating tasks can be performed.
- Two A valves in one housing.
- Max. operating pressure up to 500 mbar, degree of protection IP 54.
- DMV-D/11 is fast opening, DMV-DLE/11 with slow opening and opening time setting with fast stroke section at valve V2. Both are fast closing.
- Manual limitation of flowing gas volume by main volume setting at valve V1 (for DMV 503/11 the setting is done at V2).
- Mountable closed position signal contact K01/1 to monitor both valves (for DMV 503/11 only on V2).
- Sieve installed
- It does not contain any non-ferrous metals, suitable for gases up to max. 0.1 vol % H2S, dry. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.
Technical specifications DMV-D, DMV-DLE solenoid valves
Valve type | Code | Rp/DN | Voltage (V) | pmax (mbar) | Solenoid no. | Valve sealing | Ambient temp. (oC) |
---|---|---|---|---|---|---|---|
Double valve DMV-D 503/11 | 222326 | Rp 3/8 | 220-240 V (AC) | 500 | 1011 | NBR | -15÷60 |
Double valve DMV-D 507/11 | 222331 | Rp 3/4 | 1111 | NBR | -15÷60 | ||
242074 | 1111 | Viton | 0÷60 | ||||
Double valve DMV-D 512/11 | 222336 | Rp 1 1/4 | 1211 | NBR | -15÷60 | ||
242075 | 1211 | Viton | 0÷60 | ||||
Double valve DMV-D 520/11 | 221924 | Rp 2 | 1212 | NBR | -15÷60 | ||
242076 | 1212 | Viton | 0÷60 | ||||
Double valve DMV-D 525/11 | 223367 | 1411 | NBR | -15÷60 | |||
Double valve DMV-D 5040/11 | 224380 | DN 40 | 220-240 V (AC) | 500 | 1311 | NBR | -15÷60 |
Double valve DMV-D 5050/11 | 224381 | DN 50 | 1311 | ||||
Double valve DMV-D 5065/11 | 224382 | DN 65 | 1411 | ||||
Double valve DMV-D 5080/11 | 224383 | DN 80 | 1511 | ||||
Double valve DMV-D 5100/11 | 224384 | DN 100 | 1611 | ||||
Double valve DMV-D 5125/11 | 224385 | DN 125 | 1711 |
Valve type | Code | Rp/DN | Voltage (V) | pmax (mbar) | Solenoid no. | Degree of protection | Ambient temp. (oC) |
---|---|---|---|---|---|---|---|
Double valve DMV-DLE 503/11 | 222327 | Rp 3/8 | 220-240 V (AC) | 500 | 1011 | IP 54 | -15÷60 |
Double valve DMV-DLE 507/11 | 222332 | Rp 3/4 | 1111 | ||||
Double valve DMV-DLE 512/11 | 222337 | Rp 1 1/4 | 1211 | ||||
Double valve DMV-DLE 520/11 | 222599 | Rp 2 | 1212 | ||||
Double valve DMV-DLE 525/11 | 223373 | Rp 2 | 1411 | ||||
Double valve DMV-DLE 5040/11 | 224923 | DN 40 | 1311 | ||||
Double valve DMV-DLE 5050/11 | 224924 | DN 50 | 1311 | ||||
Double valve DMV-DLE 5065/11 | 224925 | DN 65 | 1411 | ||||
Double valve DMV-DLE 5080/11 | 224926 | DN 80 | 1511 | ||||
Double valve DMV-DLE 5100/11 | 226111 | DN 100 | 1611 | ||||
Double valve DMV-DLE 5125/11 | 226107 | DN 125 | 1711 |
Valve type | Code | Rp/DN | Voltage (V) | pmax (mbar) | Solenoid no. | Degree of protection | Ambient temp. (oC) |
---|---|---|---|---|---|---|---|
Gas valve DMV-D 503/11 | 222872 | Rp 3/8 | 110-120 V (AC) | 500 | 1011 | IP 54 | -15÷60 |
Gas valve DMV-D 507/11 | 222873 | Rp 3/4 | 1111 | ||||
Gas valve DMV-D 512/11 | 222826 | Rp 1 1/4 | 1211 | ||||
Gas valve DMV-D 520/11 | 222823 | Rp 2 | 1212 | ||||
Gas valve DMV-D 5040/11 | 226061 | DN 40 | 1311 | ||||
Gas valve DMV-D 5050/11 | 226064 | DN 50 | 1311 |
Valve type | Code | Rp/DN | Voltage (V) | pmax (mbar) | Solenoid no. | Degree of protection | Ambient temp. (oC) |
---|---|---|---|---|---|---|---|
Gas valve DMV-DLE 503/11 | 222881 | Rp 3/8 | 110-120 V (AC) | 500 | 1011 | IP 54 | -15÷60 |
Gas valve DMV-DLE 507/11 | 222878 | Rp 3/4 | 1111 | ||||
Gas valve DMV-DLE 512/11 | 222882 | Rp 1 1/4 | 1211 | ||||
Gas valve DMV-DLE 520/11 | 222889 | Rp 2 | 1212 | ||||
Gas valve DMV-DLE 5040/11 | 226115 | DN 40 | 1311 | ||||
Gas valve DMV-DLE 5050/11 | 226118 | DN 50 | 1311 |
Valve type | Code | Rp/DN | Voltage (V) | pmax (mbar) | Solenoid no. | Degree of protection | Ambient temp. (oC) |
---|---|---|---|---|---|---|---|
Safety valve DMV-D 503/11 | 222871 | Rp 3/8 | 24-28 V (DC) | 500 | 1011 | IP 54 | -15÷60 |
Safety valve DMV-D 507/11 | 222875 | Rp 3/4 | 1111 | ||||
Safety valve DMV-D 512/11 | 222828 | Rp 1 1/4 | 1211 | ||||
Safety valve DMV-D 520/11 | 222825 | Rp 2 | 1212 | ||||
Safety valve DMV-D 5040/11 | 226063 | DN 40 | 1311 | ||||
Safety valve DMV-D 5050/11 | 226066 | DN 50 | 1311 |
Valve type | Code | Rp/DN | Voltage (V) | pmax (mbar) | Solenoid no. | Degree of protection | Ambient temp. (oC) |
---|---|---|---|---|---|---|---|
Safety valve DMV-DLE 503/11 | 222880 | Rp 3/8 | 24-28 V (DC) | 500 | 1011 | IP 54 | -15÷60 |
Safety valve DMV-DLE 507/11 | 222876 | Rp 3/4 | 1111 | ||||
Safety valve DMV-DLE 512/11 | 222884 | Rp 1 1/4 | 1211 | ||||
Safety valve DMV-DLE 520/11 | 222890 | Rp 2 | 1212 | ||||
Safety valve DMV-DLE 5040/11 | 226117 | DN 40 | 1311 | ||||
Safety valve DMV-DLE 5050/11 | 226120 | DN 50 | 1311 |
Valve type | Code | Rp | Voltage (V) | pmax (mbar) | Solenoid no. | Degree of protection | Ambient temp. (oC) | Opening time (s) |
---|---|---|---|---|---|---|---|---|
DMV-D 503/11 | 228147 | Rp 3/8 | 12 V (DC) | 500 | 1011 | IP 54 | -15÷60 | <1 |
DMV-DLE 503/11 | 228146 | Rp 3/8 | 1011 | 20 |
Dimensions DMV-D / DMV-DLE double solenoid valves (mm)
For the images that aren't clear move the mouse over them to zoom.

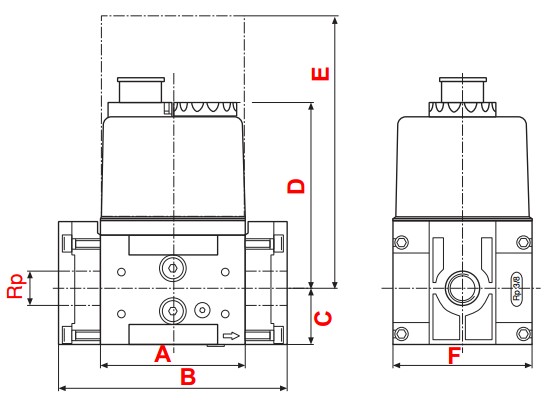

Valve type | A | B | C | D | E | F | Weight (kg) |
---|---|---|---|---|---|---|---|
Solenoid valve DMV-D 503/11 | 77 | 121 | 30 | 109 | 190 | 73 | 1.7 |
Solenoid valve DMV-DLE 503/11 | 77 | 121 | 30 | 109 | 206 | 73 | 1.8 |
E - space requirements for fitting solenoid

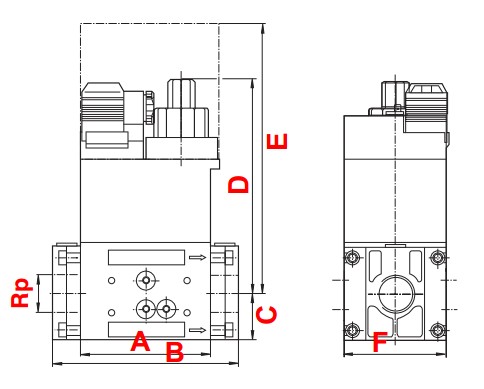

Valve type | A | B | C | D | E | F | Weight (kg) |
---|---|---|---|---|---|---|---|
Solenoid valve DMV-D 507/11 | 93 | 141 | 35 | 134 | 232 | 73 | 2.1 |
Solenoid valve DMV-D 512/11 | 124 | 174 | 45 | 150 | 254 | 99 | 4.6 |
Solenoid valve DMV-D 520/11 | 124 | 201 | 45 | 190 | 333 | 99 | 5.6 |
Solenoid valve DMV-DLE 507/11 | 93 | 141 | 35 | 160 | 232 | 73 | 2.2 |
Solenoid valve DMV-DLE 512/11 | 124 | 174 | 45 | 179 | 254 | 99 | 4.7 |
Solenoid valve DMV-DLE 520/11 | 124 | 201 | 45 | 218 | 323 | 99 | 5.7 |

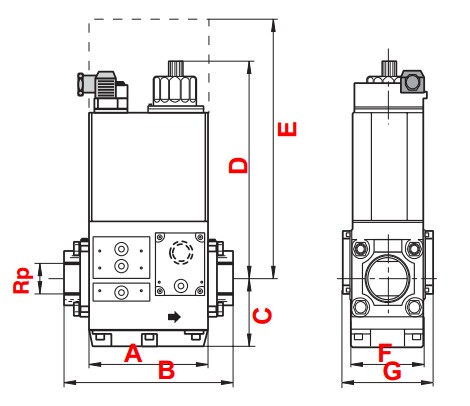

Valve type | A | B | C | D | E | F | G | Weight (kg) |
---|---|---|---|---|---|---|---|---|
Solenoid valve DMV-D 525/11 | 162 | 243 | 88 | 255 | 400 | 103 | 123 | 12.1 |
Solenoid valve DMV-DLE 525/11 | 162 | 243 | 88 | 275 | 400 | 103 | 123 | 12.3 |

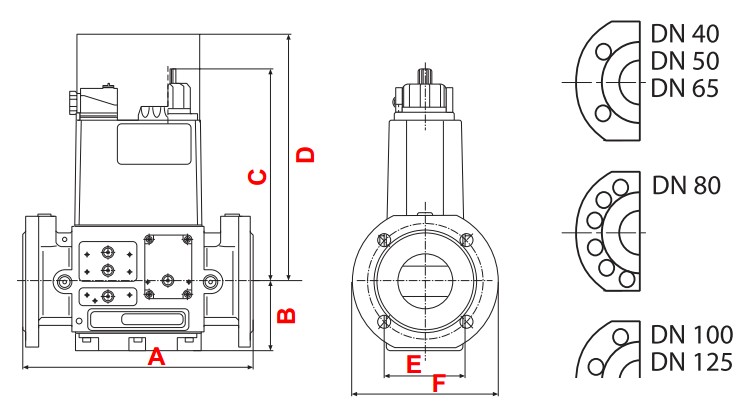

Valve type | A | B | C | D | E | F | Weight (kg) |
---|---|---|---|---|---|---|---|
Double solenoid valve DMV-D 5040/11 | 240 | 62.5 | 192 | 330 | 100 | 150 | 7.8 |
Double solenoid valve DMV-D 5050/11 | 240 | 73 | 192 | 330 | 100 | 165 | 8.3 |
Double solenoid valve DMV-D 5065/11 | 290 | 87 | 251 | 450 | 102 | 185 | 14.6 |
Double solenoid valve DMV-D 5080/11 | 310 | 104 | 293 | 510 | 129 | 200 | 23.6 |
Double solenoid valve DMV-D 5100/11 | 350 | 119 | 331 | 600 | 143 | 220 | 30.6 |
Double solenoid valve DMV-D 5125/11 | 400 | 142 | 412 | 750 | 161 | 255 | 50.6 |
Valve type | A | B | C | D | E | F | Weight (kg) |
---|---|---|---|---|---|---|---|
Double solenoid valve DMV-DLE 5040/11 | 240 | 62.5 | 220 | 330 | 100 | 150 | 7.9 |
Double solenoid valve DMV-DLE 5050/11 | 240 | 73 | 220 | 330 | 100 | 165 | 8.4 |
Double solenoid valve DMV-DLE 5065/11 | 290 | 87 | 275 | 450 | 102 | 185 | 14.8 |
Double solenoid valve DMV-DLE 5080/11 | 310 | 104 | 312 | 510 | 129 | 200 | 24.1 |
Double solenoid valve DMV-DLE 5100/11 | 350 | 119 | 382 | 600 | 143 | 220 | 31.1 |
Double solenoid valve DMV-DLE 5125/11 | 400 | 142 | 462 | 750 | 161 | 255 | 51.1 |
D - space requirements for fitting solenoid

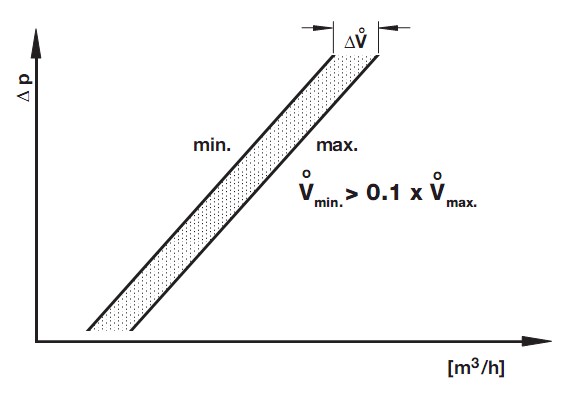

Main flow setting valve DMV-D / DMV-DLE
Main flow setting only possible at V1. Set main volume on open valve. Set valve V1 during operation. Check setting values continuously.
One rotation corresponds to approximately 0.5 mm stroke (threaded series) and 1 mm (flanged series).

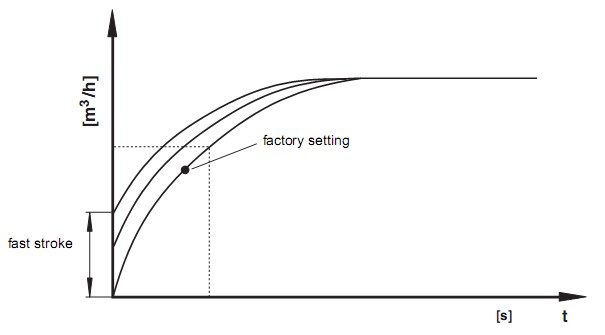

Rapid stroke adjustment V start for DMV-DLE
Factory setting: Rapid stroke not adjusted.

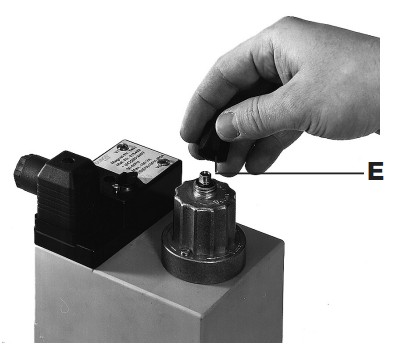

1) Unscrew the adjustment cap from the hydraulic brake.
2) Turn the adjustment cap and use as a tool.
3) Turn anti-clockwise = increase rapid stroke (+).
Flow diagrams for gas valves DMV-D / DMV-DLE

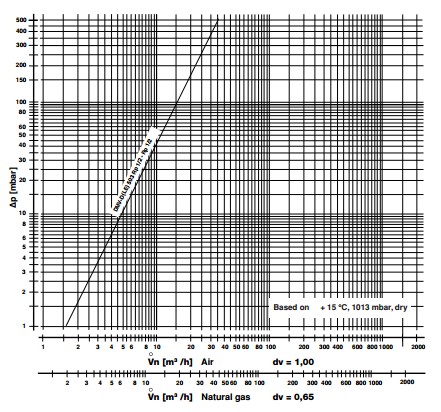

- DMV-D(LE) 503/11

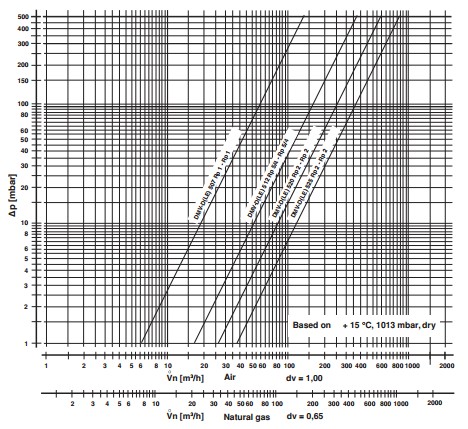

- DMV-D(LE) 505/11 - 525/11

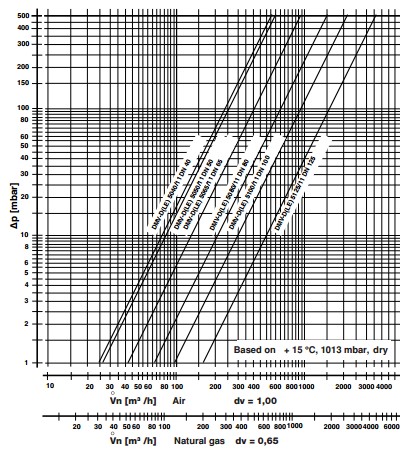

- DMV-D(LE) 5040/11 - 5125/11
- For more drawings or details access the operation manual.
For the images that aren't clear move the mouse over them to zoom.
Prices double solenoid valves DMV-D / DMV-DLE Dungs
Code | Series DMV-D 5.../11 220-240 V(AC) | Prices without VAT |
---|---|---|
222326 | DMV-D 503/11 | 0.00 |
222331 | DMV-D 507/11 - In Stock | 0.00 |
242074 | DMV-D 507/11 Viton | 0.00 |
222336 | DMV-D 512/11 - In Stock | 0.00 |
242075 | DMV-D 512/11 Viton | 0.00 |
221924 | DMV-D 520/11 - In Stock | 0.00 |
242076 | DMV-D 520/11 Viton | 0.00 |
223367 | DMV-D 525/11 | 0.00 |
224380 | DMV-D 5040/11 | 0.00 |
224381 | DMV-D 5050/11 | 0.00 |
224382 | DMV-D 5065/11 | 0.00 |
224383 | DMV-D 5080/11 | 0.00 |
224384 | DMV-D 5100/11 | 0.00 |
224385 | DMV-D 5125/11 | 0.00 |
DMV-DLE 5.../11 220-240 V(AC) | ||
222327 | DMV-DLE 503/11 | 0.00 |
222332 | DMV-DLE 507/11 | 0.00 |
222337 | DMV-DLE 512/11 | 0.00 |
222599 | DMV-DLE 520/11 | 0.00 |
223373 | DMV-DLE 525/11 | 0.00 |
224923 | DMV-DLE 5040/11 | 0.00 |
224924 | DMV-DLE 5050/11 | 0.00 |
224925 | DMV-DLE 5065/11 | 0.00 |
224926 | DMV-DLE 5080/11 | 0.00 |
226111 | DMV-DLE 5100/11 | 0.00 |
226107 | DMV-DLE 5125/11 | 0.00 |
DMV-D 5.../11 110-120 V(AC) | ||
222872 | DMV-D 503/11 | 0.00 |
222873 | DMV-D 507/11 | 0.00 |
222826 | DMV-D 512/11 | 0.00 |
222823 | DMV-D 520/11 | 0.00 |
226061 | DMV-D 5040/11 | 0.00 |
226064 | DMV-D 5050/11 | 0.00 |
DMV-DLE 5.../11 110-120 V(AC) | ||
222881 | DMV-DLE 503/11 | 0.00 |
222878 | DMV-DLE 507/11 | 0.00 |
222882 | DMV-DLE 512/11 | 0.00 |
222889 | DMV-DLE 520/11 | 0.00 |
226115 | DMV-DLE 5040/11 | 0.00 |
226118 | DMV-DLE 5050/11 | 0.00 |
DMV-D 5.../11 24-28 V(DC) | ||
222871 | DMV-D 503/11 | 0.00 |
222875 | DMV-D 507/11 | 0.00 |
222828 | DMV-D 512/11 | 0.00 |
222825 | DMV-D 520/11 | 0.00 |
226063 | DMV-D 5040/11 | 0.00 |
226066 | DMV-D 5050/11 | 0.00 |
DMV-DLE 5.../11 24-28 V(DC) | ||
222880 | DMV-DLE 503/11 | 0.00 |
222876 | DMV-DLE 507/11 | 0.00 |
222884 | DMV-DLE 512/11 | 0.00 |
222890 | DMV-DLE 520/11 | 0.00 |
226117 | DMV-DLE 5040/11 | 0.00 |
226120 | DMV-DLE 5050/11 | 0.00 |
DMV-D / DMV-DLE 12 V(DC) | ||
228147 | DMV-D 503/11 | 0.00 |
228146 | DMV-DLE 503/11 | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
